Olympus TIRF 4-Line SMT

Image "Light Microscopy:BP_TIRF_4-condenser.png"

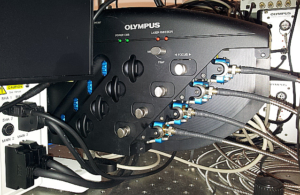

4-Line TIRF condenser

Olympus 4-Line TIRF condenser:
  • quadcolor TIRFM with four independent beam paths
  • individual motorised angle control ensures equal evanescent penetration (±1 nm)
  • replaceable clean-up filter for each laser line
  • independent adjustable field stops
  • laser combining via four dichroic beamsplitters
  • swinging in an additional lens for the first laser line (405 nm) enables FRAP experiments
