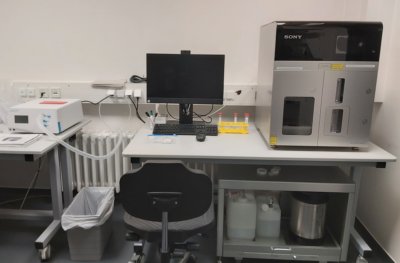

Sony FACS SH800S
Overview
The benchtop SH800S cell sorter permits sorting of a wide range of cell sizes for many applications using the 70-μm, 100-μm, and 130-μm microfluidic sorting chips. This novel, chip-based design is fully integrated with comprehensive fluidics controls and advanced automation for set-up, acquisition, sort and analysis to make sorting less subjective, more precise and easier to perform.
Specifications
- FACS analyser and sorter
- Lasers:
- 405 nm (BFP, Hoechst, DyeCycle Violet)
- 488 nm (FITC, AF488, PI, GFP, PE, YFP, Per CP, Cybr. Green, Syto 9)
- 561 nm (mCherry, TexasRed, mRFP)
- 640 nm (APC, Cy5, Af647)
- Two filtersets with 8 optical parameters per set: FSC, SSC, 6 fluorescence parameters
- Microfludic sorting chips (70 µm, 100 µm, 130 µm)
- Exchangeable sample lines
- Index sorting into 96- or 384-well plates
- 2-way sorting into FACS tubes and 15 ml Falcons
Software
- Cell Sorter Software (Sony)
